RED JIG DRILL GUIDE D35 CNC 48/6.0

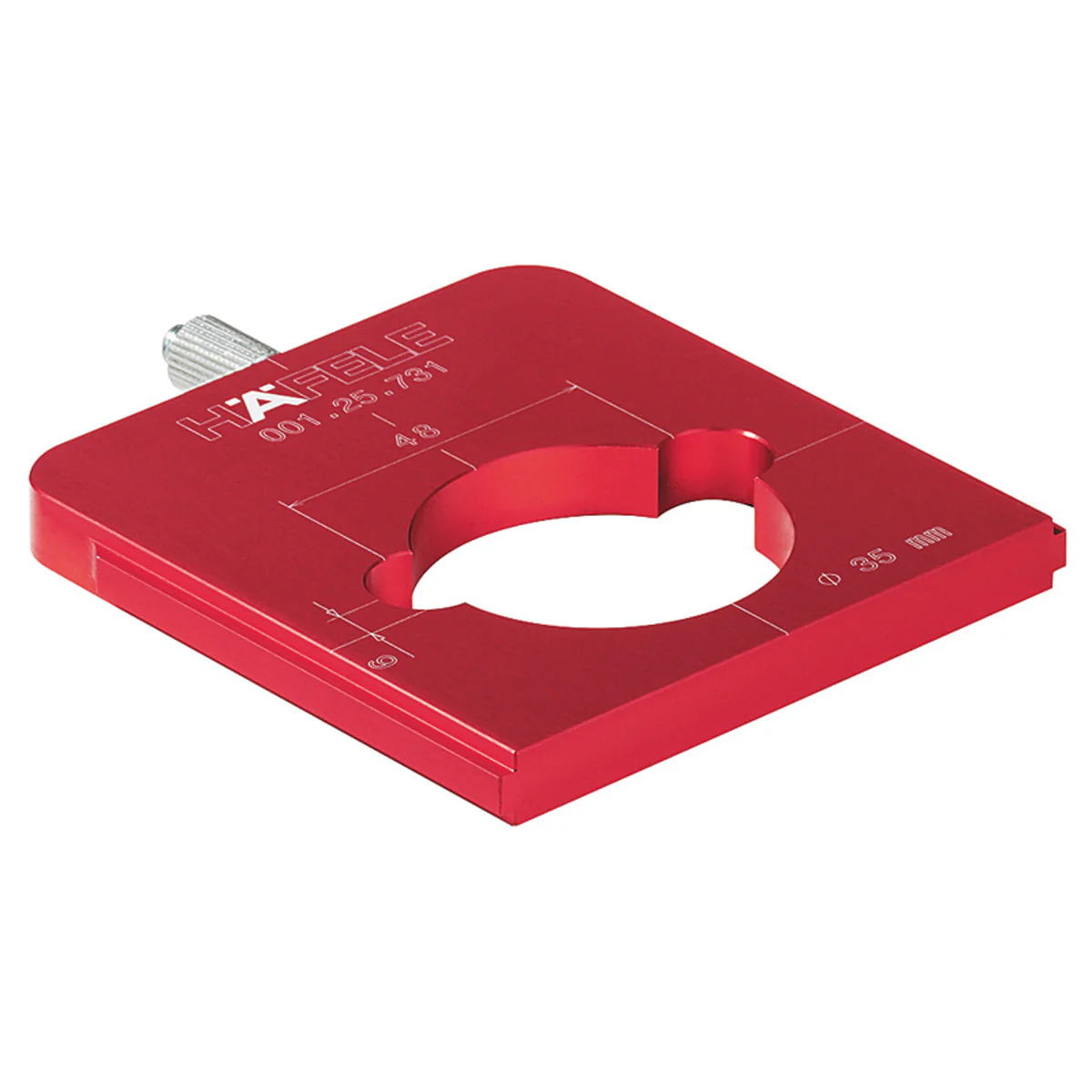

Red Jig Drill Guide — D35 Concealed Hinge, 48/6.0mm
A supplement drill guide for the Red Jig system, configured for boring D35 concealed hinge cups at 48mm from the door edge with a 6.0mm depth offset. Ensures accurate, repeatable hinge cup positioning for standard concealed hinge installation in cabinet doors.
Key Features
- Configured for D35 concealed hinge cups at 48/6.0mm
- Red Jig supplement drill guide for precise hinge cup boring
- Accurate, repeatable results for high-volume door fitting
- Reduces setup time and drilling errors
Browse our full range of connecting fitting hardware and assembly fittings.
Original: $81.76
-65%$81.76
$28.62RED JIG DRILL GUIDE D35 CNC 48/6.0
