BLUM CLIP BLUMOTION ANGLED HINGE +30deg lll MAX OVERLAY SCREW-ON

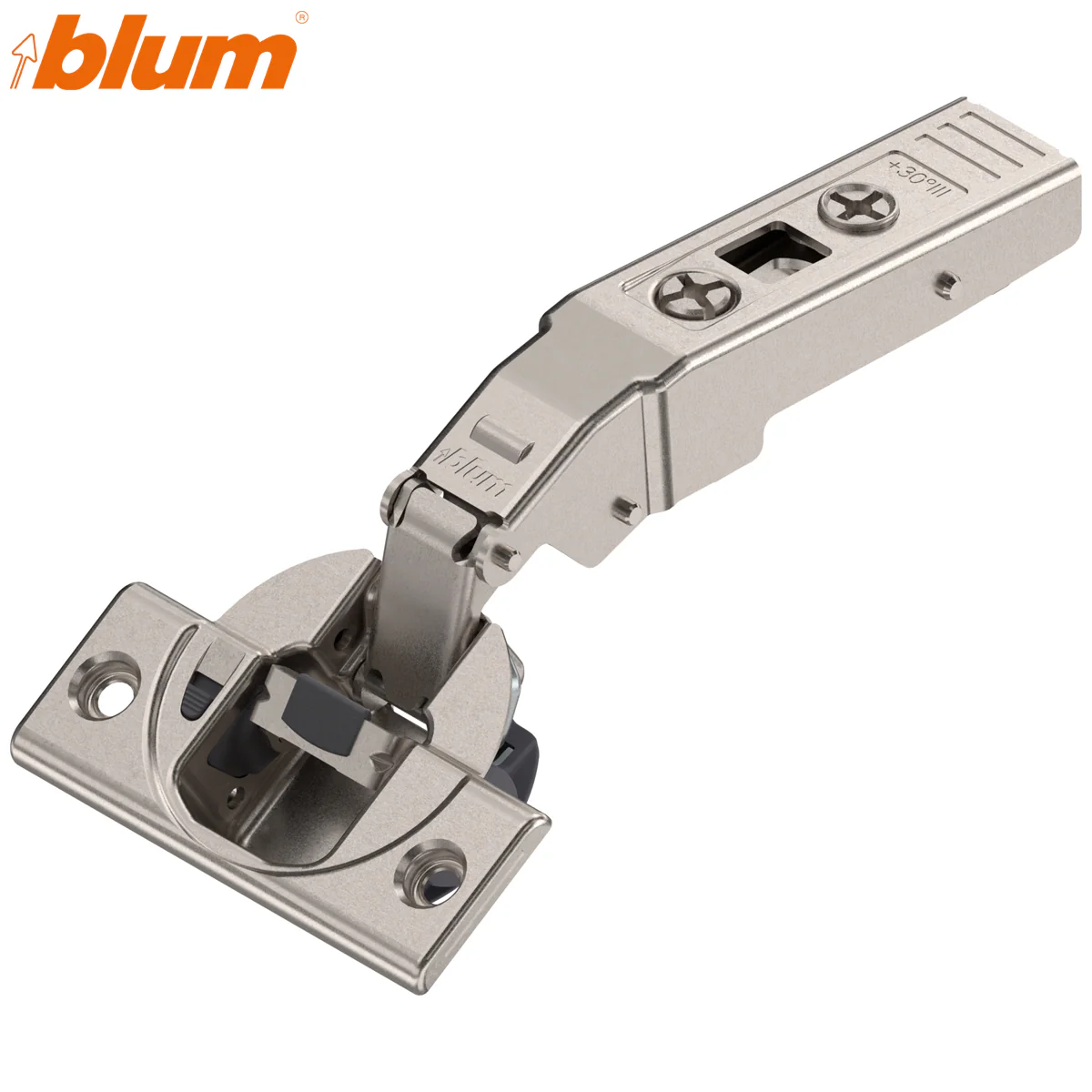

Blum Clip Top BLUMOTION Angled Hinge +30° (Type III) MAX Overlay — Sprung, Screw-On, Nickel

A Blum Clip Top BLUMOTION angled hinge with a +30° face frame angle for maximum overlay cabinet doors on angled or diagonal cabinet faces. MAX overlay provides the greatest possible door coverage on the cabinet face. Requires only a 13.5mm deep hinge cup hole. Integrated BLUMOTION soft-close mechanism — switchable on or off per hinge. Screw-on back plate fixing.

• SKU: HI79B9456
• Blum part number: 79B9456
• Face frame angle: +30° (Type III)
• Application: MAX overlay
• Soft-close: BLUMOTION — switchable on/off
• Fixing: Screw-on back plate
• Hinge cup depth: 13.5mm
• 3-dimensional front adjustment
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
