BLUM CLIP BLUMOTION ANGLED HINGE +30deg ll OVERLAY INSERTA

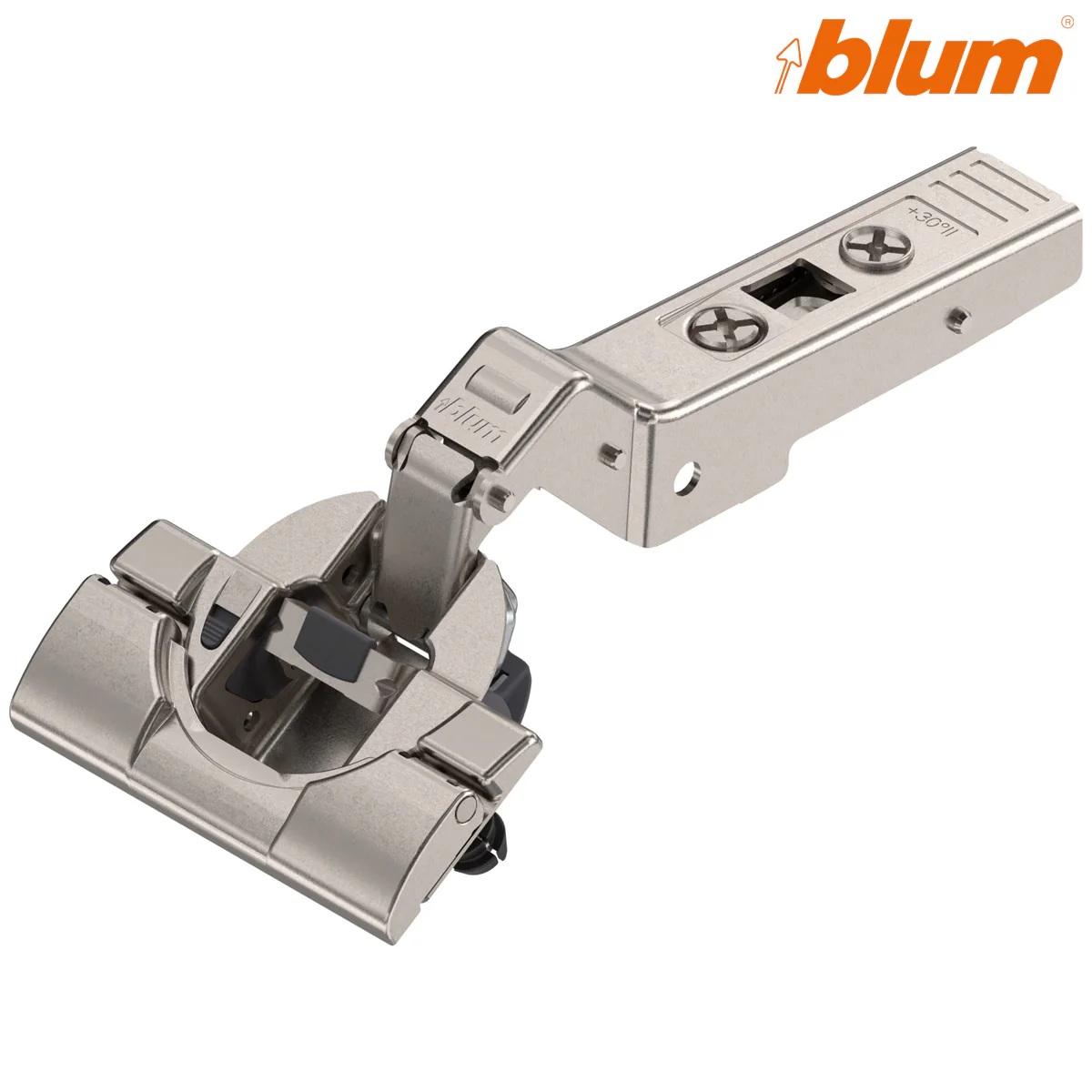

Blum Clip Top BLUMOTION Angled Hinge +30° (Type II) — Overlay, Sprung, INSERTA, Nickel

A Blum Clip Top BLUMOTION angled hinge with a +30° face frame angle for overlay cabinet doors on angled or diagonal cabinet faces. Requires only a 13.5mm deep hinge cup hole. Integrated BLUMOTION soft-close mechanism — switchable on or off per hinge. INSERTA boss for tool-free, press-in hinge cup installation.

• SKU: HI79B9596
• Blum part number: 79B9596
• Face frame angle: +30° (Type II)
• Application: Overlay
• Soft-close: BLUMOTION — switchable on/off
• Fixing: INSERTA (tool-free press-in boss)
• Hinge cup depth: 13.5mm
• 3-dimensional front adjustment
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
