BLUM CLIP THIN DOOR HINGE 107deg DUAL INSERTA

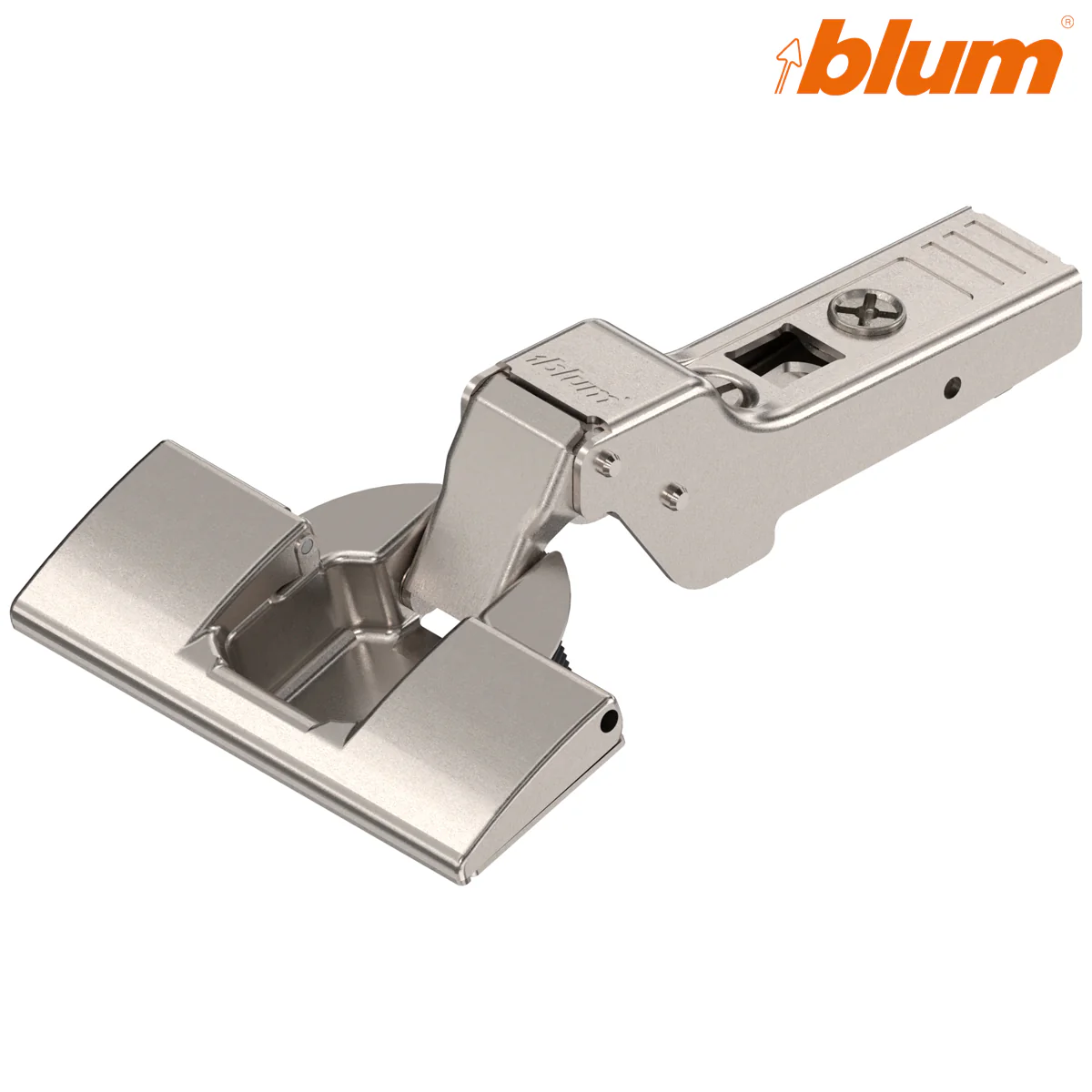

Blum Clip Top Thin Door Hinge 107° — Dual (Half-Overlay), Sprung, INSERTA, Nickel

A Blum Clip Top hinge with a 107° opening angle for dual (half-overlay) cabinet doors, where two doors share a central cabinet partition. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. INSERTA boss for tool-free, press-in hinge cup installation. Suitable for front thicknesses 15–24mm.

• SKU: HI75T1690B
• Blum part number: 75T1690B
• Opening angle: 107°
• Application: Dual (half-overlay)
• Soft-close: Sprung (integrated)
• Fixing: INSERTA (tool-free press-in boss)
• Hinge cup depth: 11.5mm only
• Suitable for front thicknesses 15–24mm
• 3-dimensional front adjustment
• Depth adjustment with spiral screw
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
