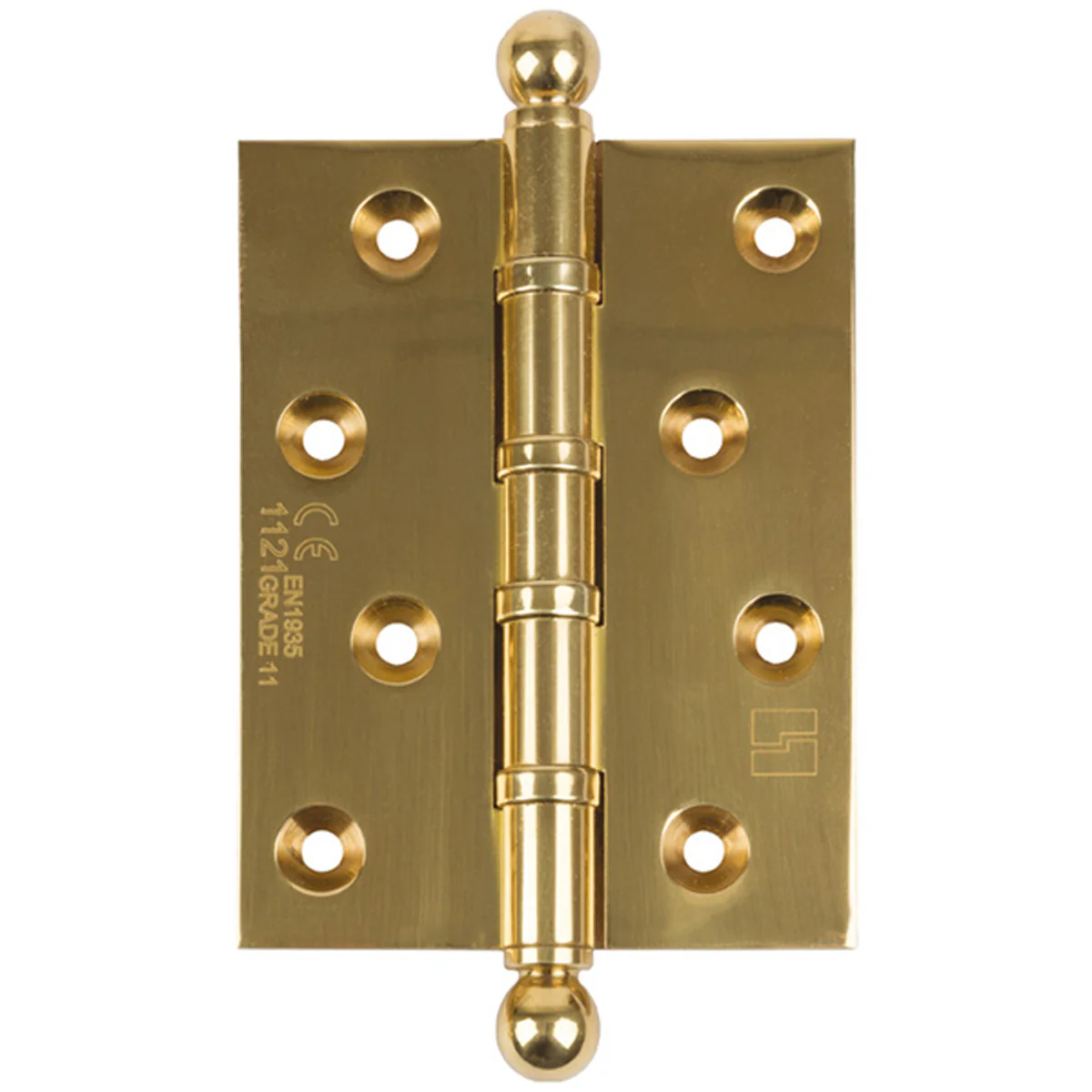

Ball Bearing Butt Hinge Ball Finial Intumescent 100x75x6mm Polished Brass
A ball bearing butt hinge with ball finial and intumescent pads, measuring 100 x 75 x 6mm in polished/lacquered brass. The integrated intumescent pads expand under heat to seal the hinge recess and maintain the fire integrity of a fire-rated door installation, making this hinge suitable for use on FD30 and FD60 fire doors without the need for separate intumescent liners. The ball finial and polished brass finish deliver a classic, premium appearance suited to traditional and period door styles.
Supplied as a single hinge.
- Type: Ball bearing butt hinge with intumescent pads
- Finial: Ball

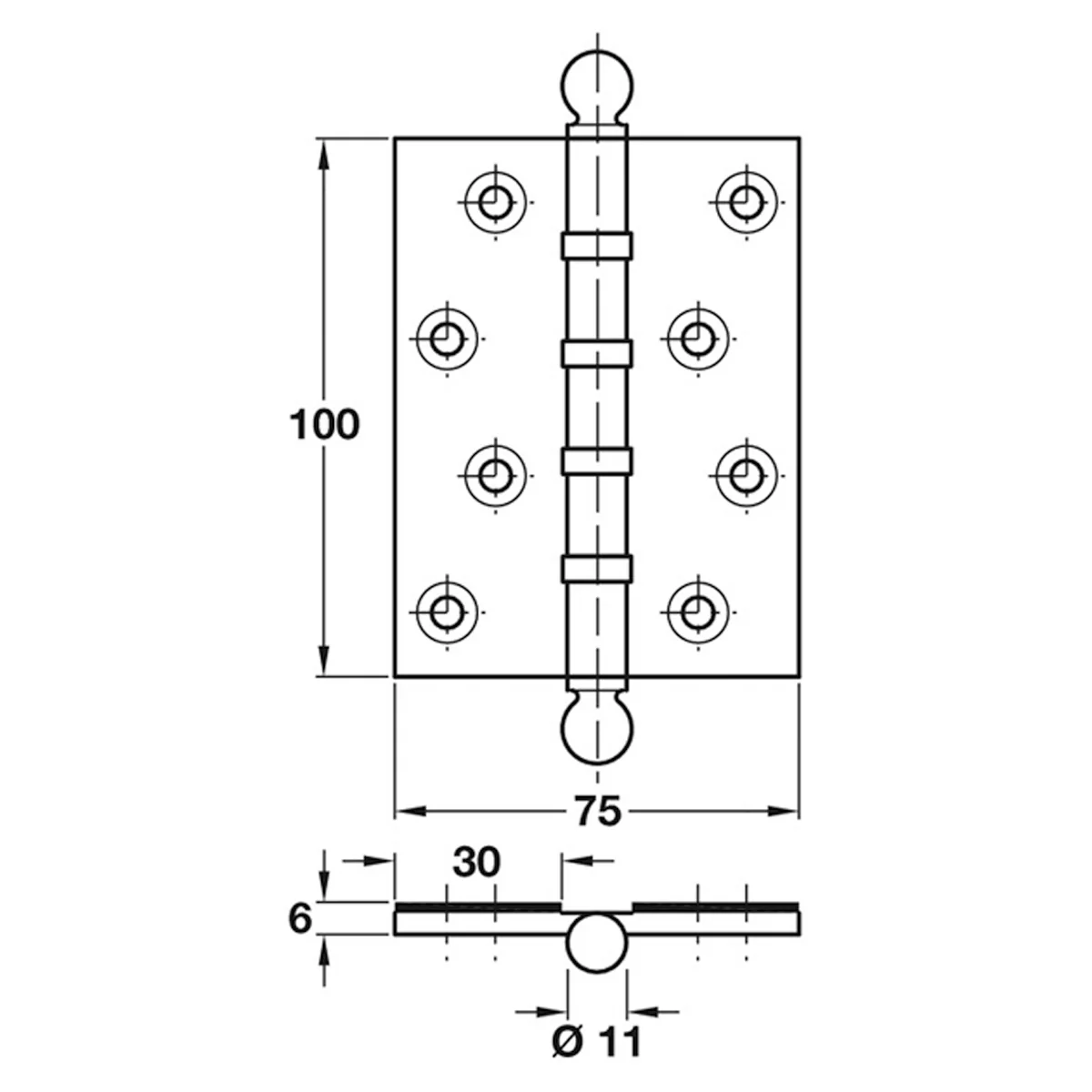

- Dimensions: 100 x 75 x 6mm
- Finish: Polished/lacquered brass
- Fire rating: Suitable for fire-rated doors
For urn finial versions, see the Ball Bearing Butt Hinge Urn Finial Satin Chrome and Imitation Bronze. Browse the full fire door hardware range.
