BLUM CLIP HINGE 107deg OVERLAY EXPANDO

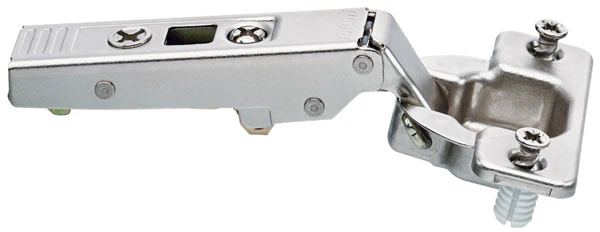

Blum Clip Top Thin Door Hinge 107° — Overlay, Sprung, EXPANDO, Nickel

A Blum Clip Top hinge with a 107° opening angle for overlay cabinet doors. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. EXPANDO boss expands on insertion for a secure, tool-free fit without drilling a fixing hole. Suitable for front thicknesses 15–24mm.

• SKU: HI75T158E
• Blum part number: 75T158E
• Opening angle: 107°
• Application: Overlay
• Soft-close: Sprung (integrated)
• Fixing: EXPANDO (tool-free expanding boss)
• Hinge cup depth: 11.5mm only
• Suitable for front thicknesses 15–24mm
• 3-dimensional front adjustment
• Depth adjustment with spiral screw
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
