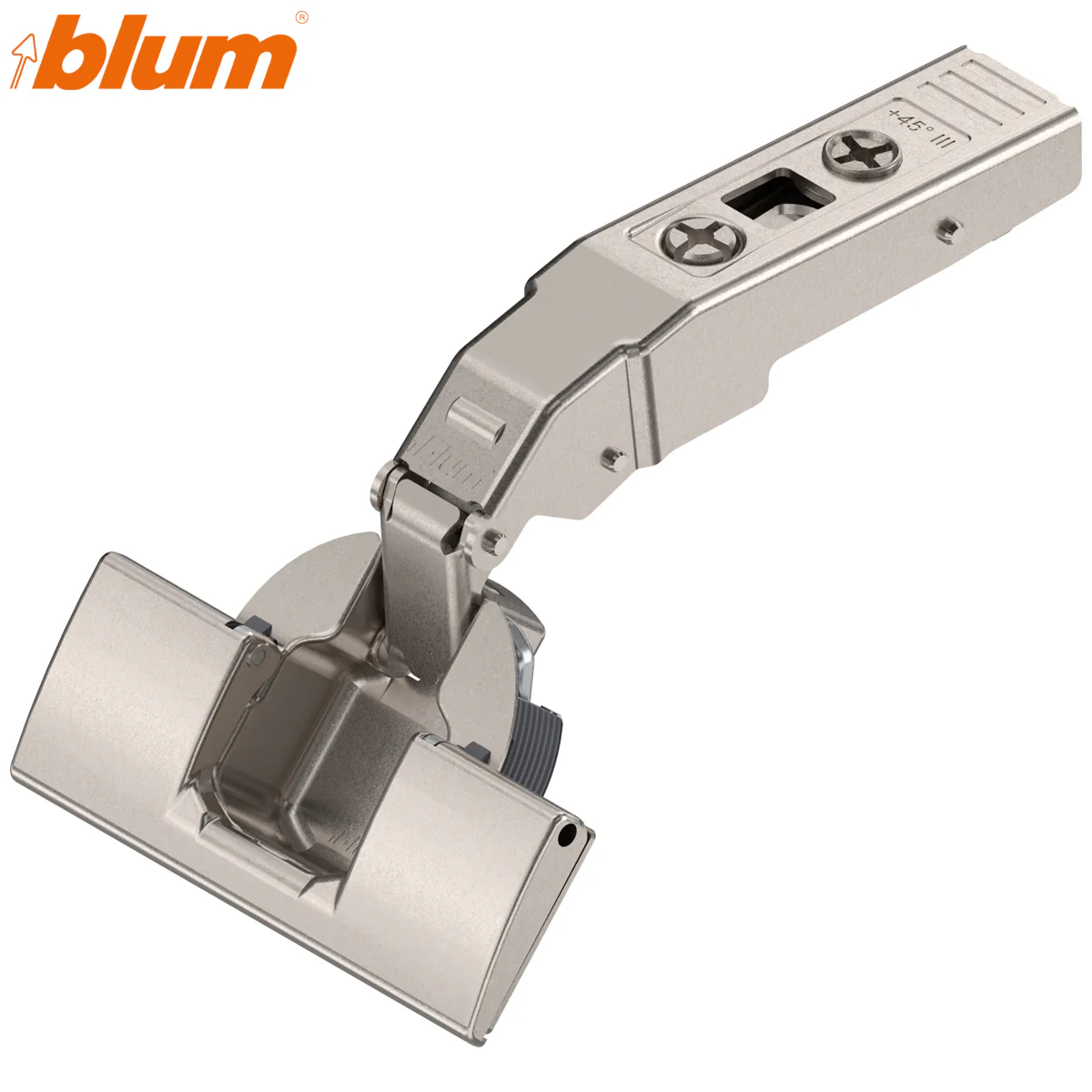

Blum Clip Top Angled Hinge +45° (Type III) MAX Overlay — Unsprung, INSERTA, Nickel

A Blum Clip Top angled hinge with a +45° face frame angle for maximum overlay cabinet doors on angled or diagonal cabinet faces. MAX overlay provides the greatest possible door coverage on the cabinet face. Requires only a 13.5mm deep hinge cup hole. INSERTA boss for tool-free, press-in hinge cup installation.

• SKU: HI79A9498REA
• Blum part number: 79A9498BT
• Face frame angle: +45° (Type III)
• Application: MAX overlay
• Mechanism: Unsprung
• Fixing: INSERTA (tool-free press-in boss)
• Hinge cup depth: 13.5mm
• 3-dimensional front adjustment
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
