BLUM CLIP ANGLED HINGE +45deg l 1/2OVERLAY SCREW-ON

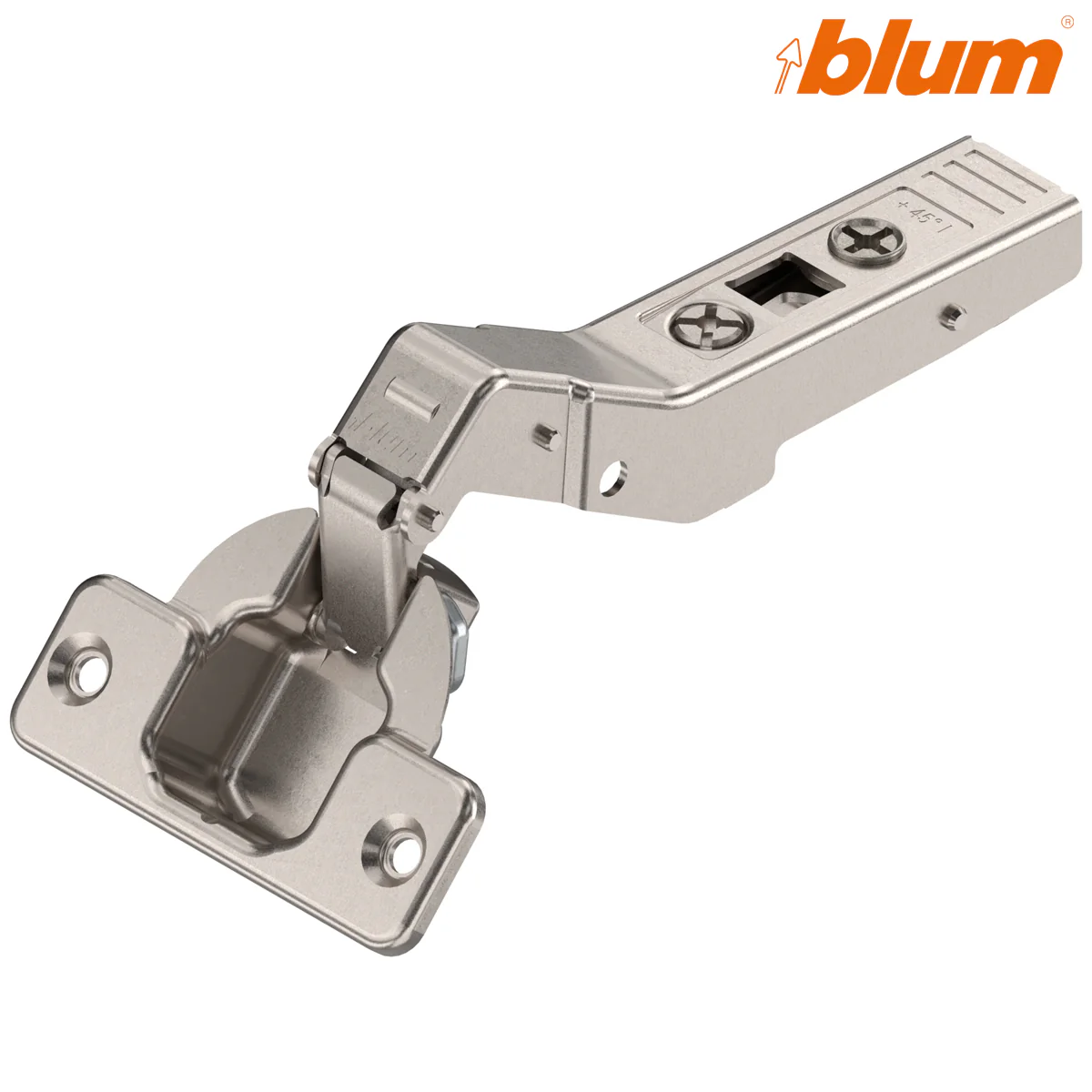

Blum Clip Top Angled Hinge +45° (Type I) — Dual (Half-Overlay), Unsprung, Screw-On, Nickel

A Blum Clip Top angled hinge with a +45° face frame angle for dual (half-overlay) cabinet doors on angled or diagonal cabinet faces. Requires only a 13.5mm deep hinge cup hole. Screw-on back plate fixing.

• SKU: HI79A9658.T
• Blum part number: 79A9658.T
• Face frame angle: +45° (Type I)
• Application: Dual (half-overlay)
• Mechanism: Unsprung
• Fixing: Screw-on back plate
• Hinge cup depth: 13.5mm
• 3-dimensional front adjustment
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
