BLUM CLIP ANGLED HINGE +37deg ll OVERLAY SCREW-ON

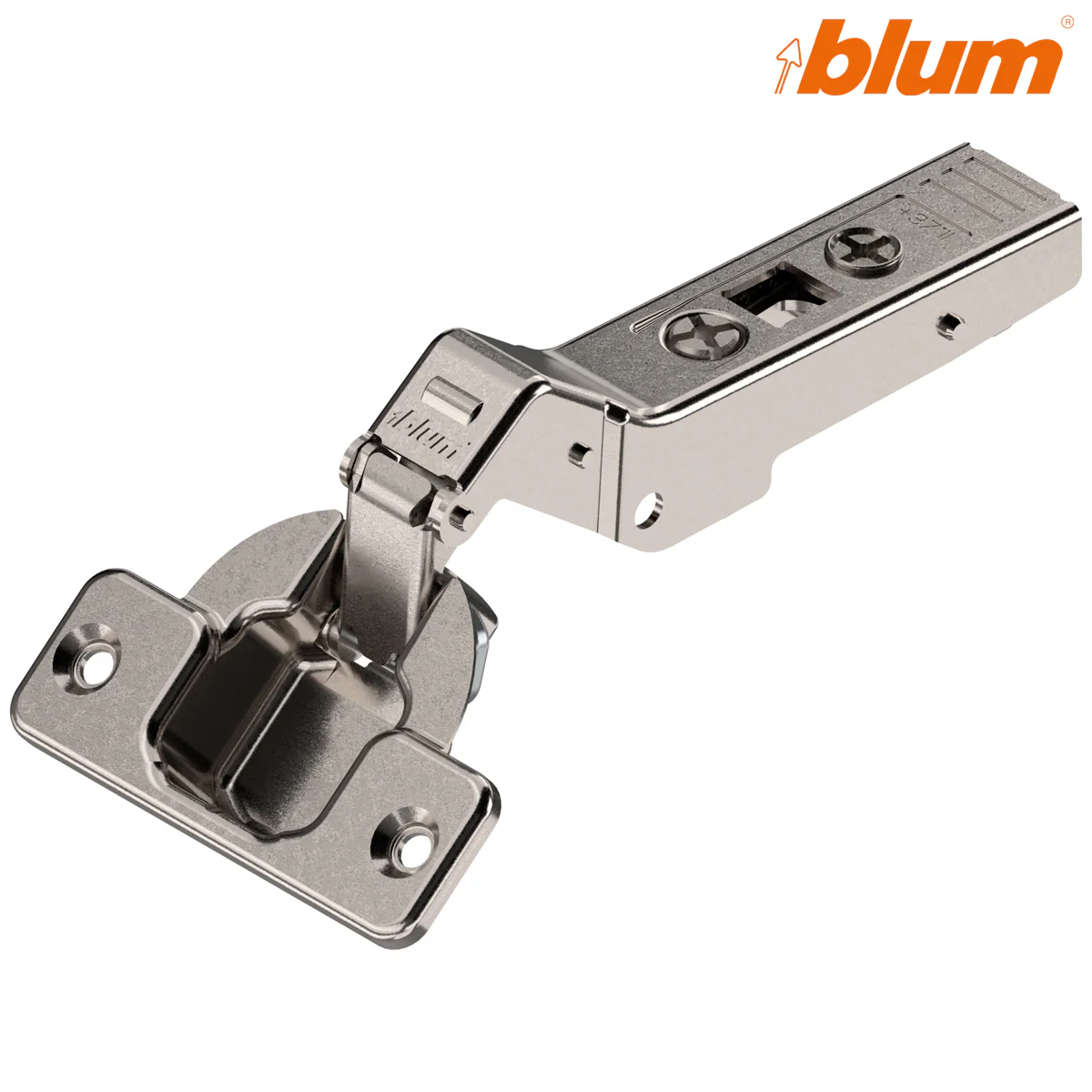

Blum Clip Top Angled Hinge +37° (Type II) — Overlay, Unsprung, Screw-On, Nickel

A Blum Clip Top angled hinge with a +37° face frame angle for overlay cabinet doors on angled or diagonal cabinet faces. Requires only a 13.5mm deep hinge cup hole. Screw-on back plate fixing.

• SKU: HI79A9557T
• Blum part number: 79A9557.T
• Face frame angle: +37° (Type II)
• Application: Overlay
• Mechanism: Unsprung
• Fixing: Screw-on back plate
• Hinge cup depth: 13.5mm
• 3-dimensional front adjustment
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
