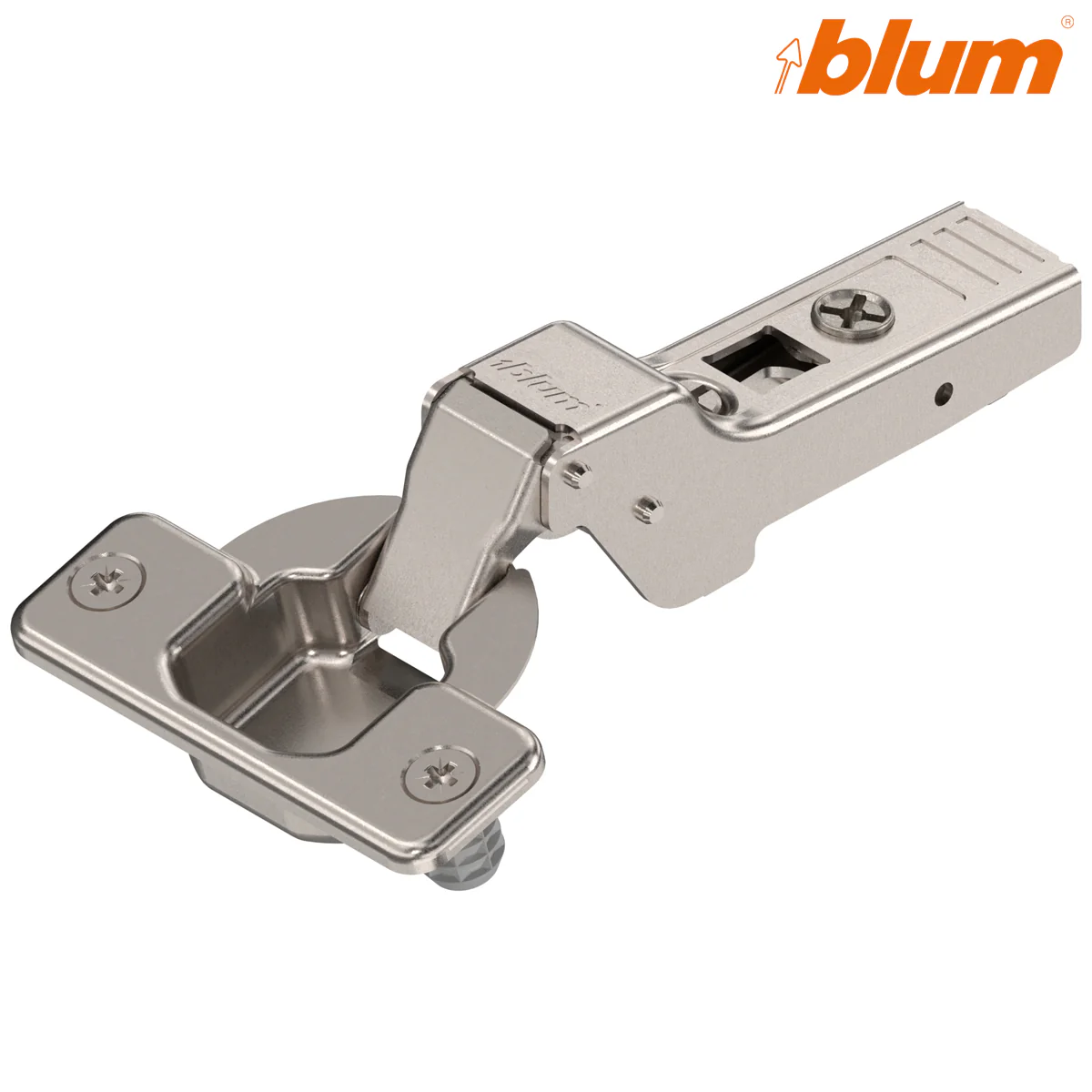

Blum Clip Top Thin Door Hinge 107° — Dual (Half-Overlay), Sprung, Knock-In, Nickel

A Blum Clip Top hinge with a 107° opening angle for dual (half-overlay) cabinet doors, where two doors share a central cabinet partition. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. Knock-in back plate for fast, tool-free installation. Suitable for front thicknesses 15–24mm.

  • SKU: HI75T1680
  • Blum part number: 75T1680
  • Opening angle: 107°
  • Application: Dual (half-overlay)
  • Soft-close: Sprung (integrated)
  • Fixing: Knock-in back plate (tool-free)
  • Hinge cup depth: 11.5mm only
  • Suitable for front thicknesses 15–24mm
  • 3-dimensional front adjustment
  • Depth adjustment with spiral screw
  • Tool-free door-to-cabinet assembly and removal
  • Finish: Nickel
  • Blum Lifetime Guarantee
  • Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.

$0.62

Original: $1.78

-65%
BLUM CLIP THIN DOOR HINGE 107deg DUAL KNOCK-IN—

$1.78

$0.62

BLUM CLIP THIN DOOR HINGE 107deg DUAL KNOCK-IN

Blum Clip Top Thin Door Hinge 107° — Dual (Half-Overlay), Sprung, Knock-In, Nickel

A Blum Clip Top hinge with a 107° opening angle for dual (half-overlay) cabinet doors, where two doors share a central cabinet partition. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. Knock-in back plate for fast, tool-free installation. Suitable for front thicknesses 15–24mm.

  • SKU: HI75T1680
  • Blum part number: 75T1680
  • Opening angle: 107°
  • Application: Dual (half-overlay)
  • Soft-close: Sprung (integrated)
  • Fixing: Knock-in back plate (tool-free)
  • Hinge cup depth: 11.5mm only
  • Suitable for front thicknesses 15–24mm
  • 3-dimensional front adjustment
  • Depth adjustment with spiral screw
  • Tool-free door-to-cabinet assembly and removal
  • Finish: Nickel
  • Blum Lifetime Guarantee
  • Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.

Product Information

Shipping & Returns

Description

Blum Clip Top Thin Door Hinge 107° — Dual (Half-Overlay), Sprung, Knock-In, Nickel

A Blum Clip Top hinge with a 107° opening angle for dual (half-overlay) cabinet doors, where two doors share a central cabinet partition. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. Knock-in back plate for fast, tool-free installation. Suitable for front thicknesses 15–24mm.

  • SKU: HI75T1680
  • Blum part number: 75T1680
  • Opening angle: 107°
  • Application: Dual (half-overlay)
  • Soft-close: Sprung (integrated)
  • Fixing: Knock-in back plate (tool-free)
  • Hinge cup depth: 11.5mm only
  • Suitable for front thicknesses 15–24mm
  • 3-dimensional front adjustment
  • Depth adjustment with spiral screw
  • Tool-free door-to-cabinet assembly and removal
  • Finish: Nickel
  • Blum Lifetime Guarantee
  • Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
