BLUM CLIP THIN DOOR HINGE 107deg INSET KNOCK-IN

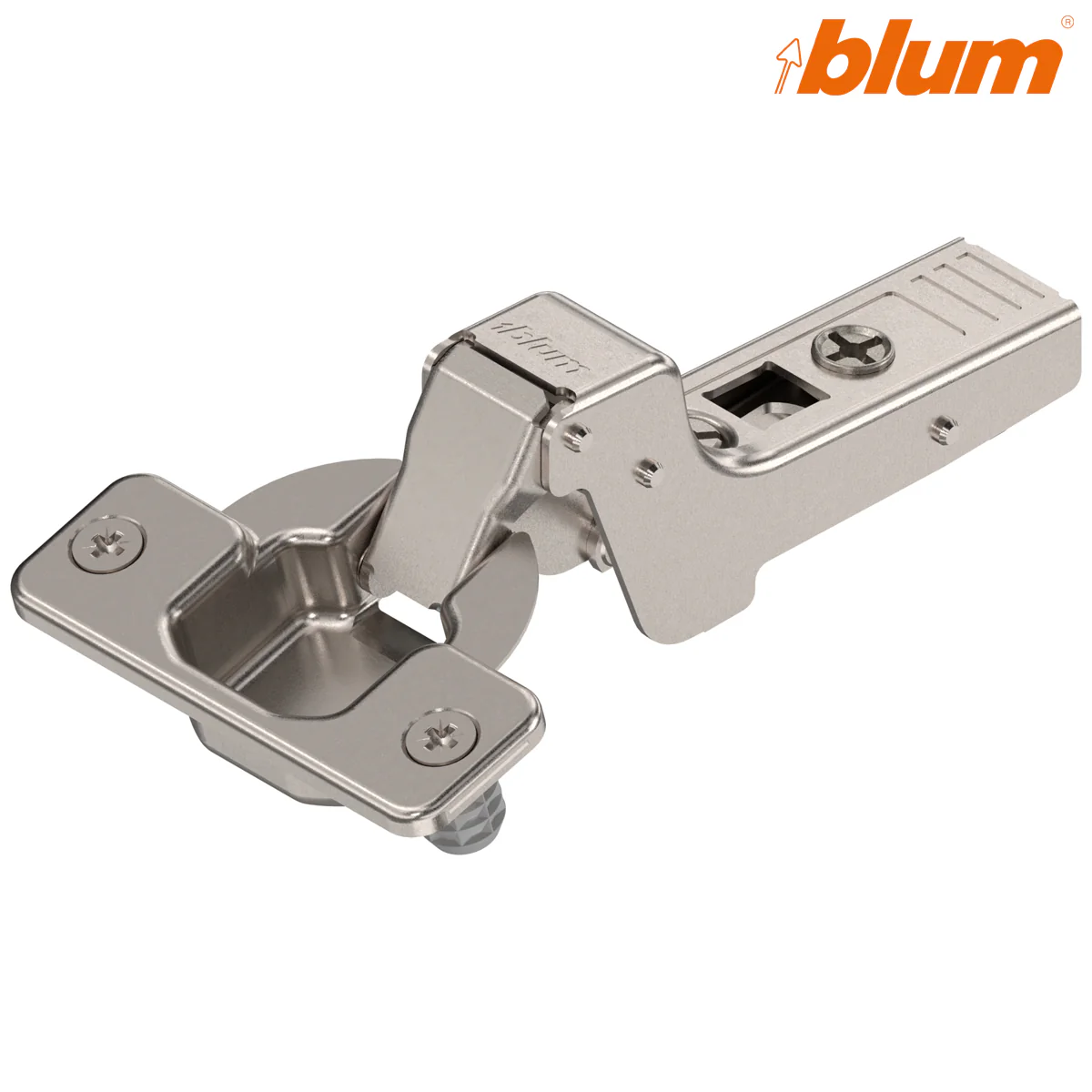

Blum Clip Top Thin Door Hinge 107° — Inset, Sprung, Knock-In, Nickel

A Blum Clip Top hinge with a 107° opening angle for inset cabinet doors, where the door sits flush within the cabinet frame. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. Knock-in back plate for fast, tool-free installation. Suitable for front thicknesses 15–24mm.

• SKU: HI75T1780
• Blum part number: 75T1780
• Opening angle: 107°
• Application: Inset
• Soft-close: Sprung (integrated)
• Fixing: Knock-in back plate (tool-free)
• Hinge cup depth: 11.5mm only
• Suitable for front thicknesses 15–24mm
• 3-dimensional front adjustment
• Depth adjustment with spiral screw
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
