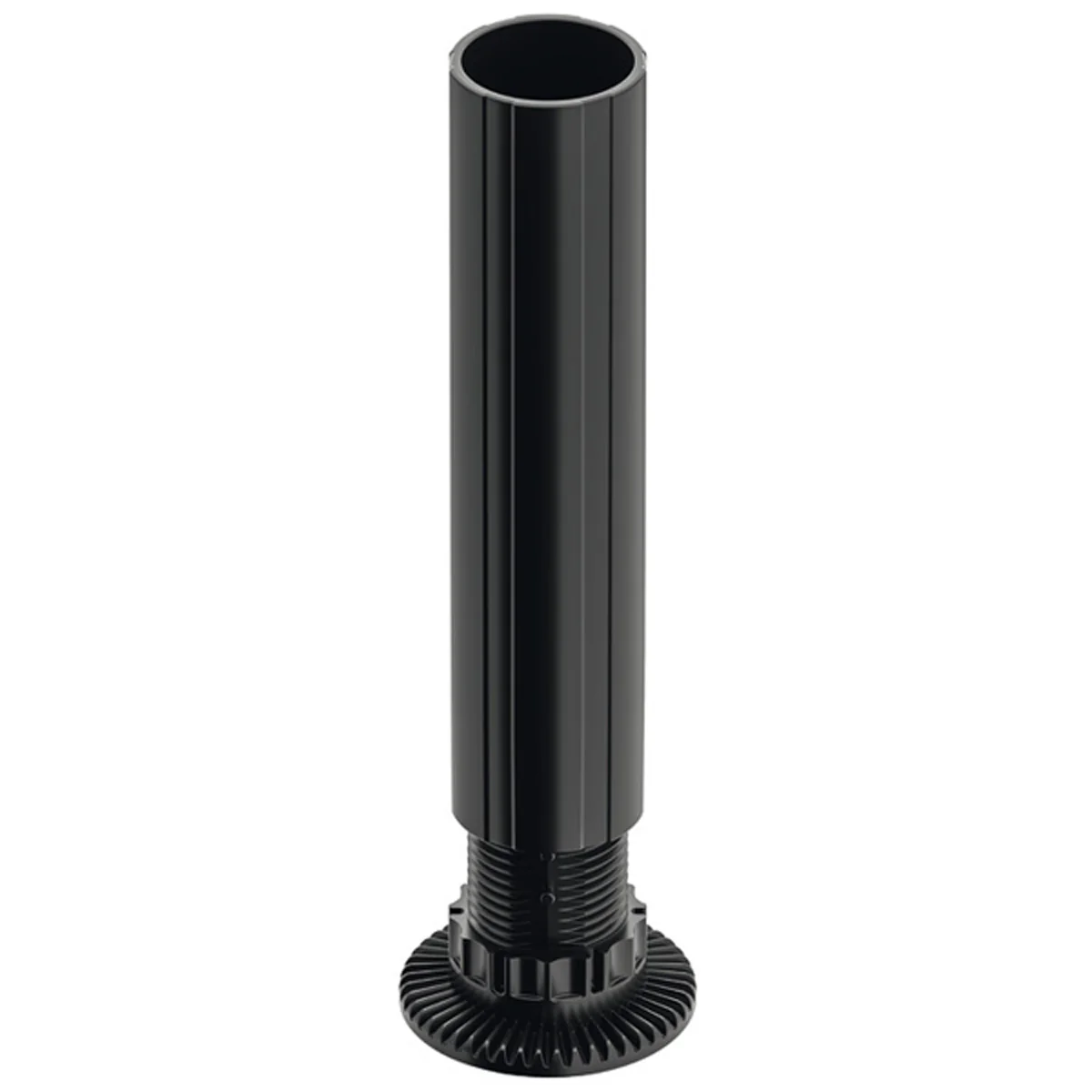

Axilo 48 Plinth Foot & Shaft Ø48x180mm Black — 165–200mm Adjustment

Axilo 48 Plinth Foot & Shaft — Ø48 x 180mm, Black, 165–200mm Adjustment Range

The Axilo 48 Plinth Foot & Shaft 180mm is the maximum-height option in the Axilo 48 adjustable leg system, delivering a 165–200mm adjustment range for the most demanding plinth configurations. Ideal for installations over deep skirting boards, significantly uneven floors, or where a tall plinth void is required, this shaft gives fitters the full reach needed to achieve a level, professional result every time.

Key Features

• Adjustment range: 165–200mm — maximum height for the Axilo 48 system
• Diameter: Ø48 mm — robust circular shaft for stable load-bearing performance
• Shaft length: 180mm
• Colour: Black — discreet beneath cabinet bases
• Height-adjustable — no shimming or floor cutting required
• Compatible with Axilo 48 Plinth Foot Top Sections and the full Cabinet Hardware — Legs, Castors & Glides range

Ideal For

Kitchen fitters and cabinet installers requiring the tallest adjustment range in the Axilo 48 system. Combine with Worktop Legs & Table Bases and plinth clips or lug tops for a complete solution. Browse the full Cabinet Legs range for all available shaft lengths.

Specification

• Part Number: 63745334
• Type: Plinth Foot & Shaft
• Diameter: Ø48 mm
• Shaft Length: 180mm
• Adjustment Range: 165–200mm
• Colour: Black
• Application: Kitchens & Bedrooms
